Genesis-V
From £250 / month
Specifications
- Max cut speed: 1500mm/s, 2000mm/s
- Max cut depth: 50mm - 150mm
- Cut width: 1.6m, 2.2m, 3.2m
- Cut length: 1.5m, 3.0m, 5.0m
Applications
Composites
Garments
Gaskets
Inflatable Structures
Marine
Parachutes & Parafoils
Polycarbonate Panels
Sail Making
Signage & Graphics
Squeegees
Tensile Architecture
Upholstery
Materials
Acrylic
Aluminium Composite Panel
Aramid Fibres & Kevlar
Carbon Fibre Pre-Preg
Card
Corrugated Cardboard
Fibreglass
Foamcore & Foamboard
Rubber
Textiles
Vinyls
Wood & MDF
Tailored solutions available
Genesis-V

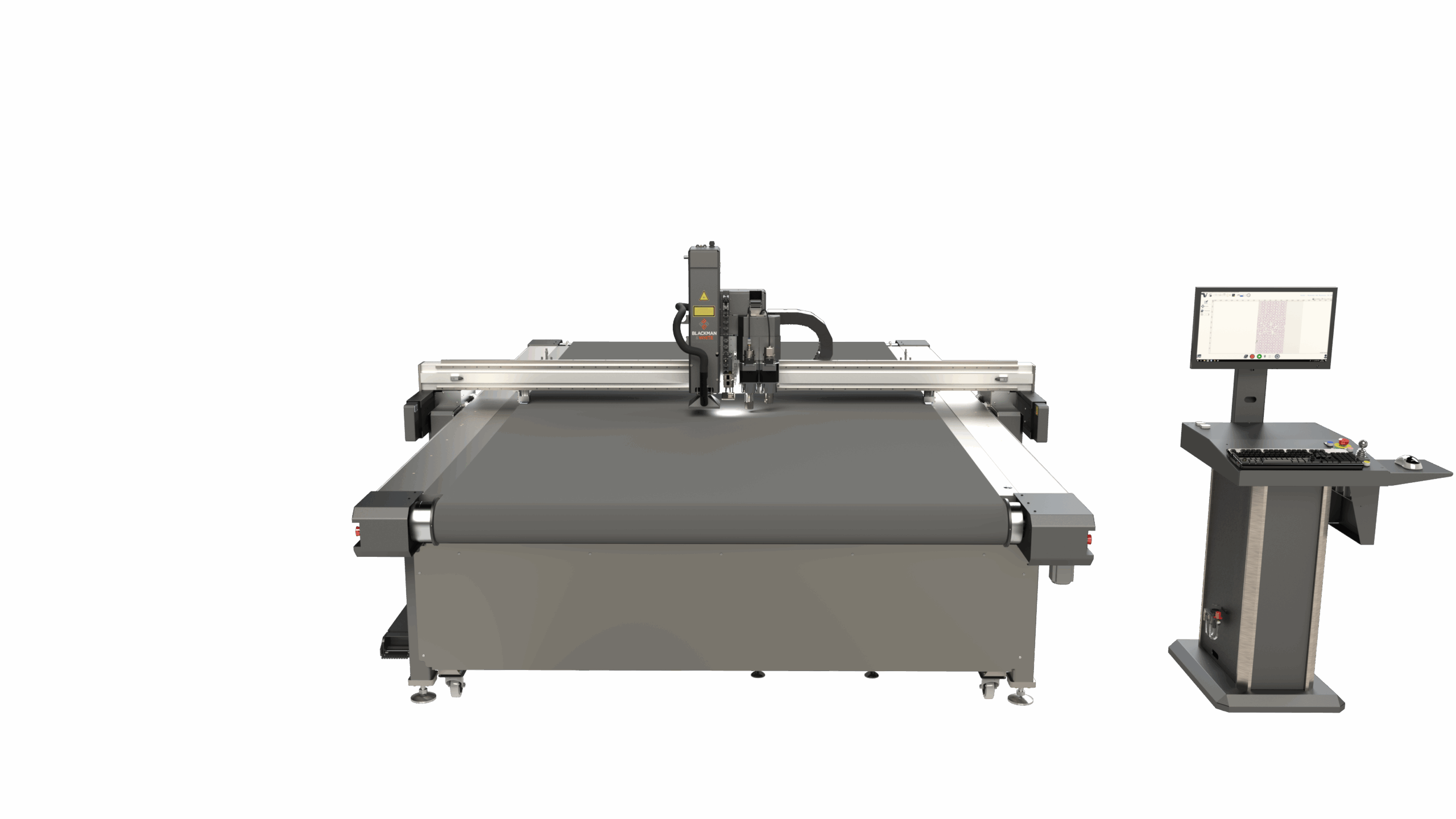

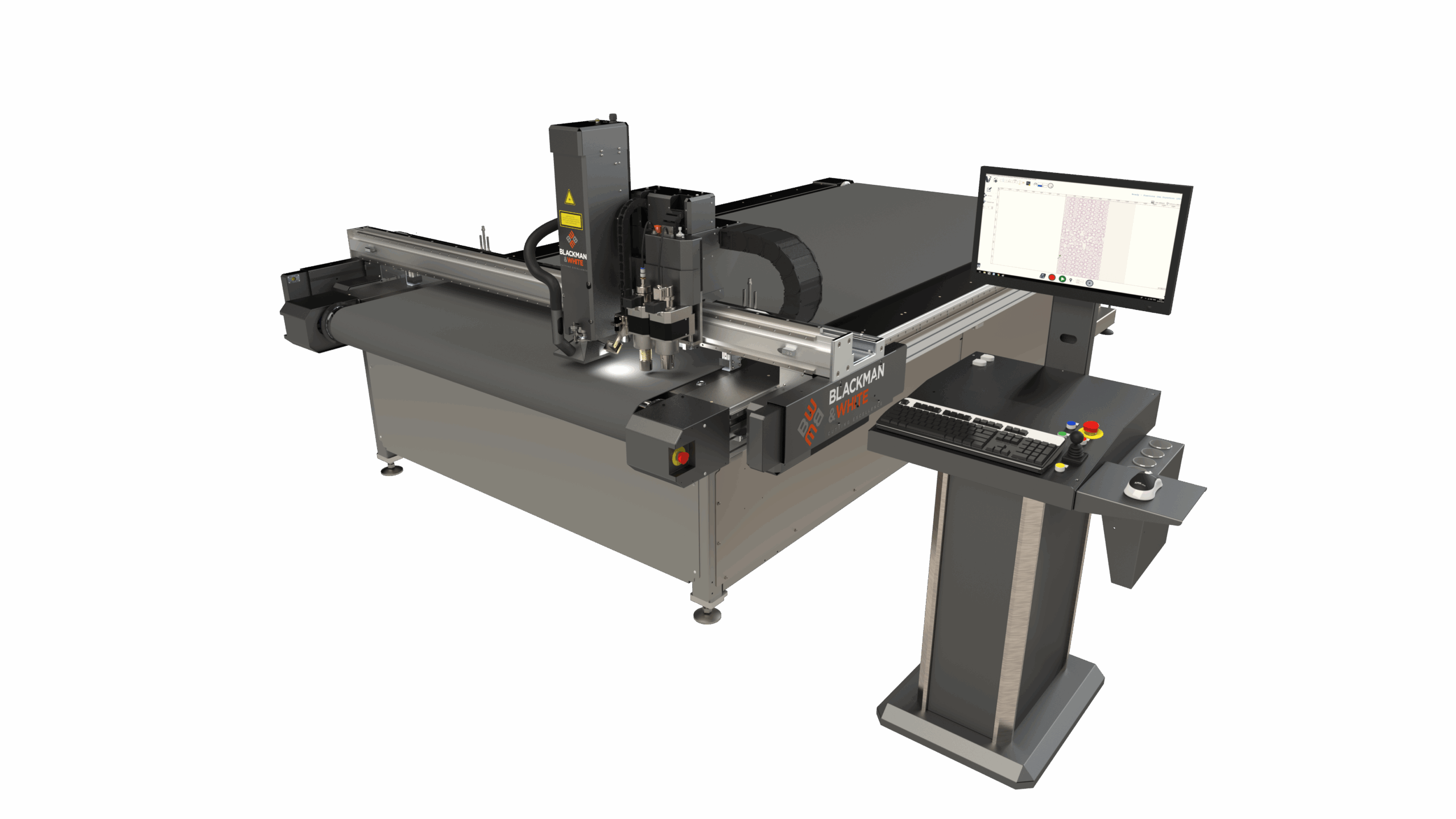

The Genesis-V CNC machine is a robust, performance-based flatbed or conveyorised cutting system with a versatile range of tooling options.
The Our Genesis-V cutting table is available in a range of bed sizes to optimise floor space. With a wide range of tools to choose from, Genesis-V can process the ever-growing range of substrates available.
Supporting Knife, Laser conveyor belt systems and Router tooling on one flatbed cutting table, Genesis-V is the most versatile cutting system available on the market today.
-
Features

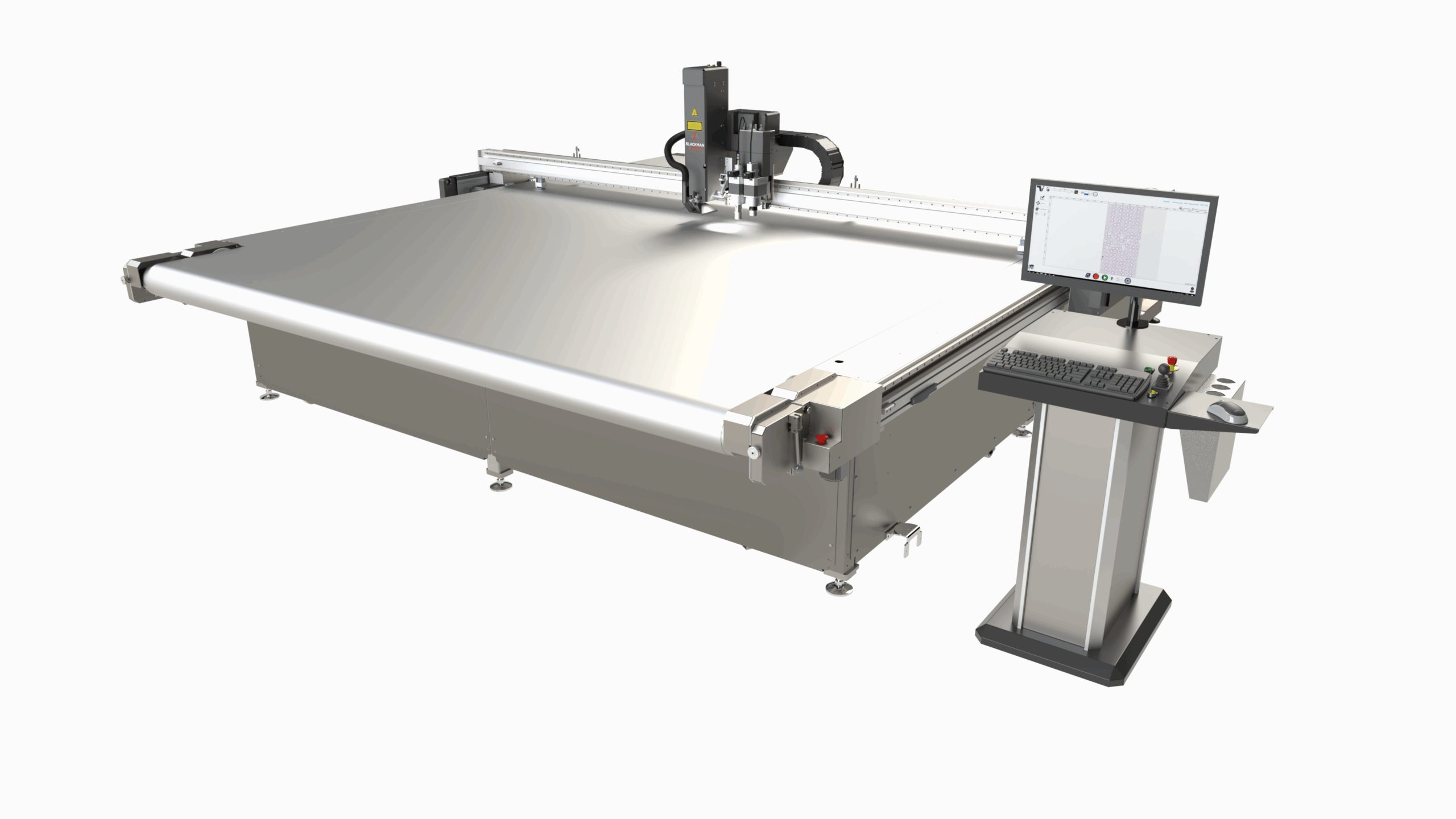

- Conveyor, Laser Conveyor or Flatbed Systems
- Full Vacuum system with adjustable zones

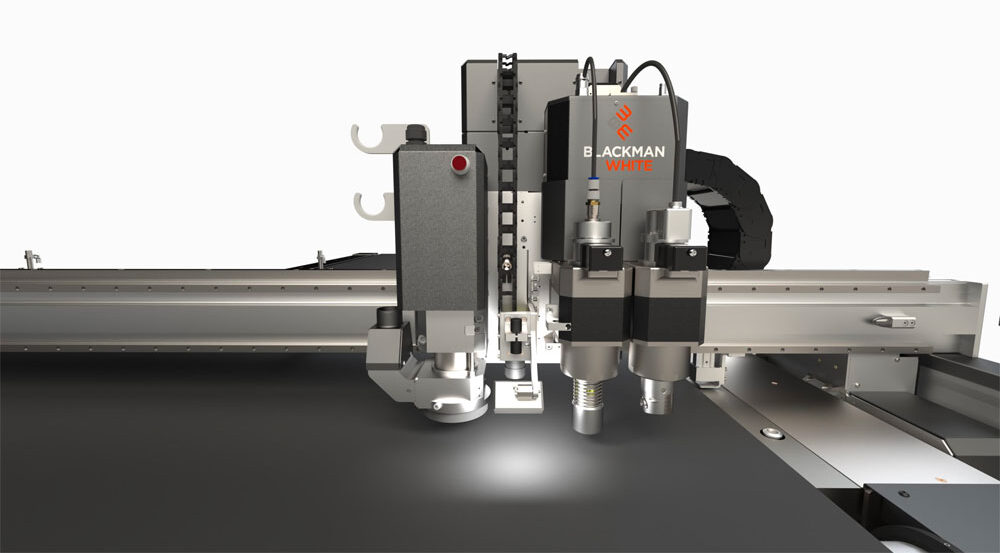

- Dual Switch Tool Module holds any two tools simultaneously, tools can be exchanged for another in seconds.

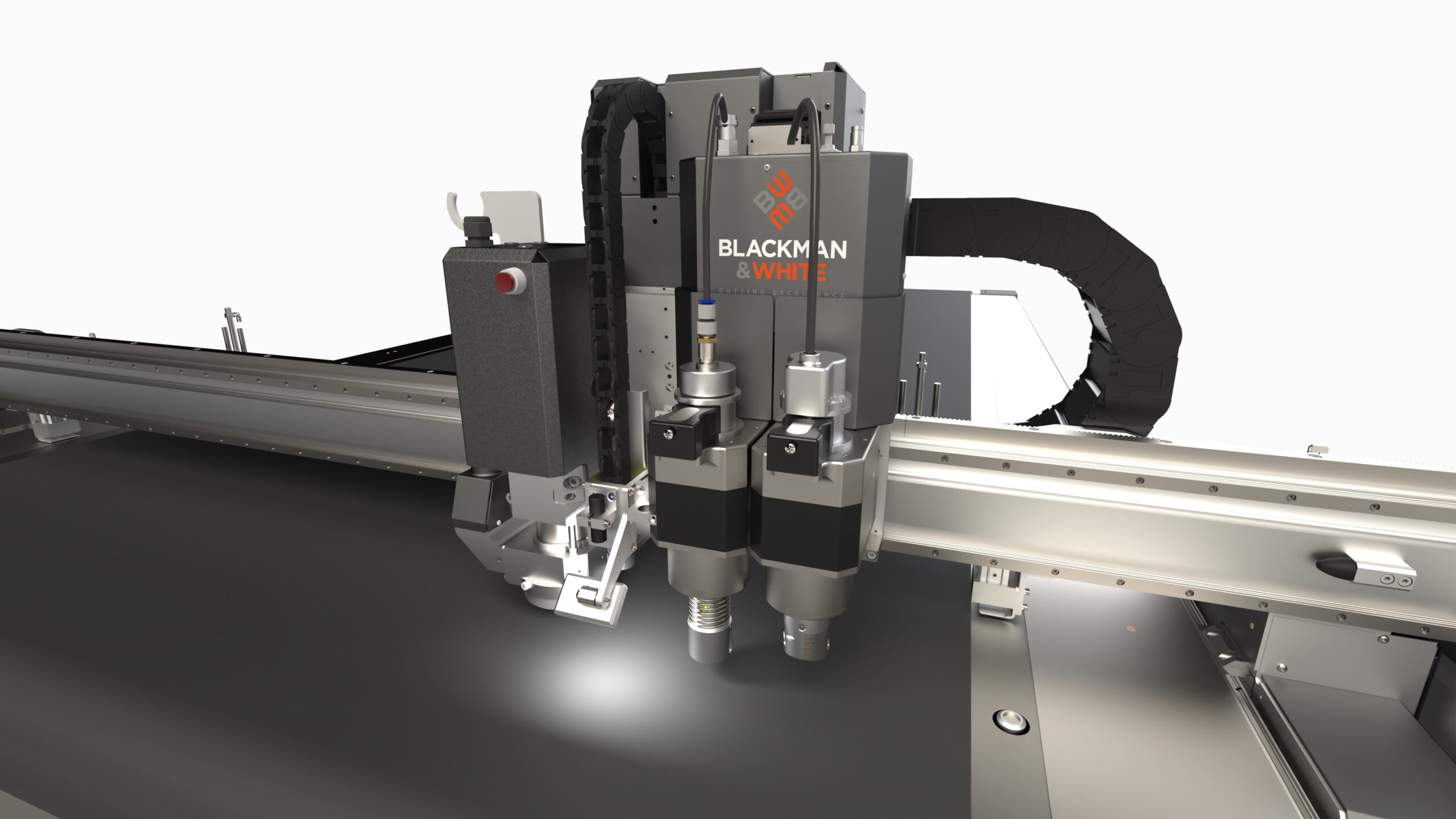

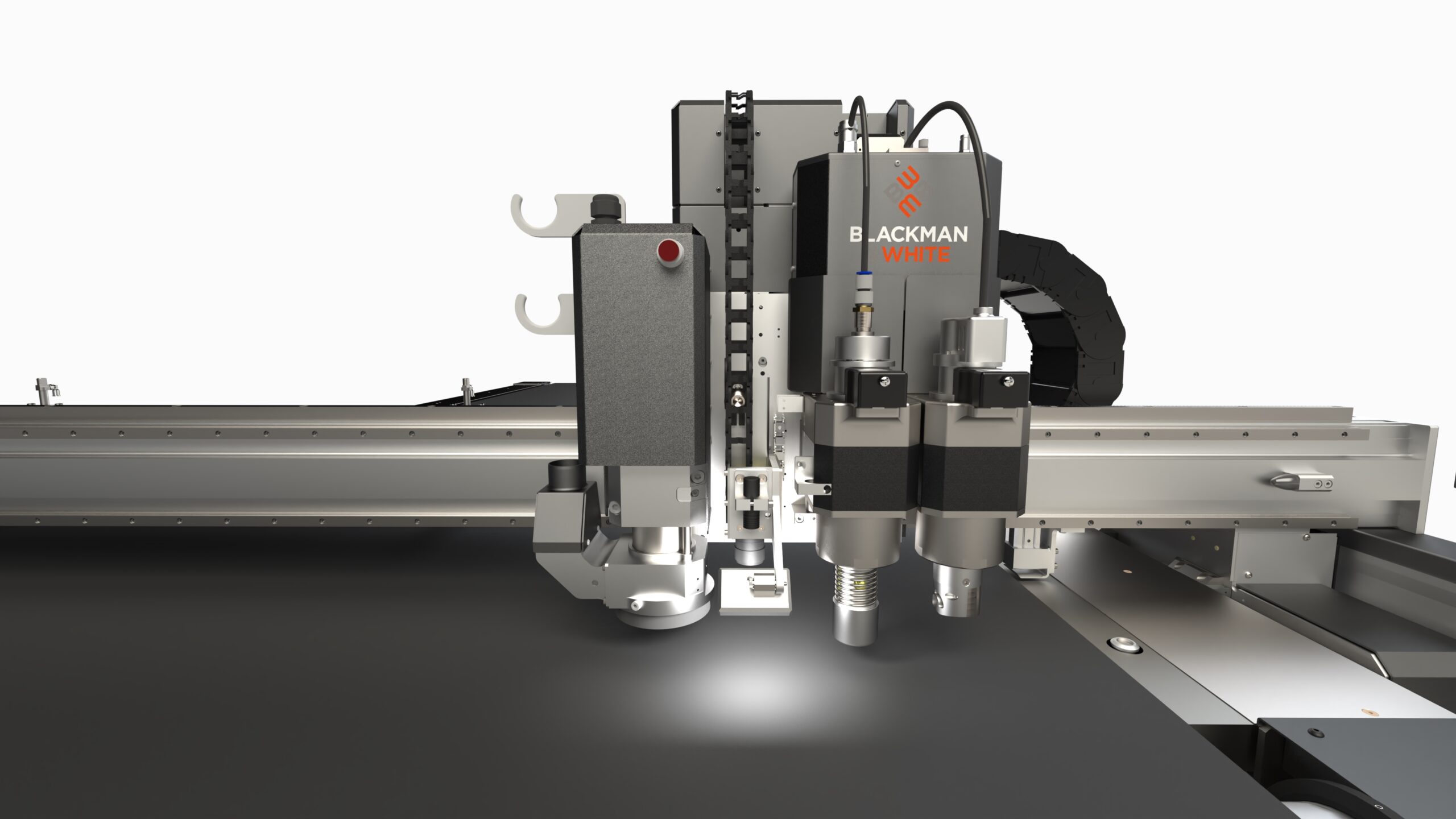

- Heavy Duty module which holds the 1kw router, 3.6kw router, 100w laser, 200w laser or dot matrix printer
- Standalone Pen Marking Tool Station
- Optical Camera for Printed Registration Marks
- High speed scanner for high volume graphics operations
- Laser Pointer and Jog Control
- Auto Tool Depth Sense to auto set tooling workflows accurately set blade depth
- Front & Rear Extension Pick-off Table
- Cloud based reporting system for job and machine logging
- Computer Controlled Cutting Machine (CNC)
-
Performance
- Maximum Cutting Speed – 1500mm or 2000mm/second
- Maximum Move Speed – 1500mm or 2000mm/second
- Cut accuracy – 0.1mm
- Repeatability – 0.1mm
- Acceleration – 1G
- Maximum Cutting Thickness – 50mm – 150mm
-
Size Options
CUT WIDTH
- 1.6m
- 2.2m
- 3.2m
CUT LENGTH
- 1.5m
- 3.0m
- 5.0m
If you cannot find the size you require, please contact us as we offer tailored Genesis-V systems upon request.
-
Key Industries
- Composites
- Marine
- Sign & Graphics
- Technical Textiles
- Aerospace
- Automotive
- Upholstery
- Leather
- Tensile Structures
- Packaging
- POS
- Medical
- Aerospace
- Defence
- Awnings
-
Downloads
Cutting Tools & Marking
Discover compatible tools for your CNC machine. Cut, crease, draw mark and more with our wide range of tools. available.
Contact us for advice on which tools would suit your machine and business and application best.
